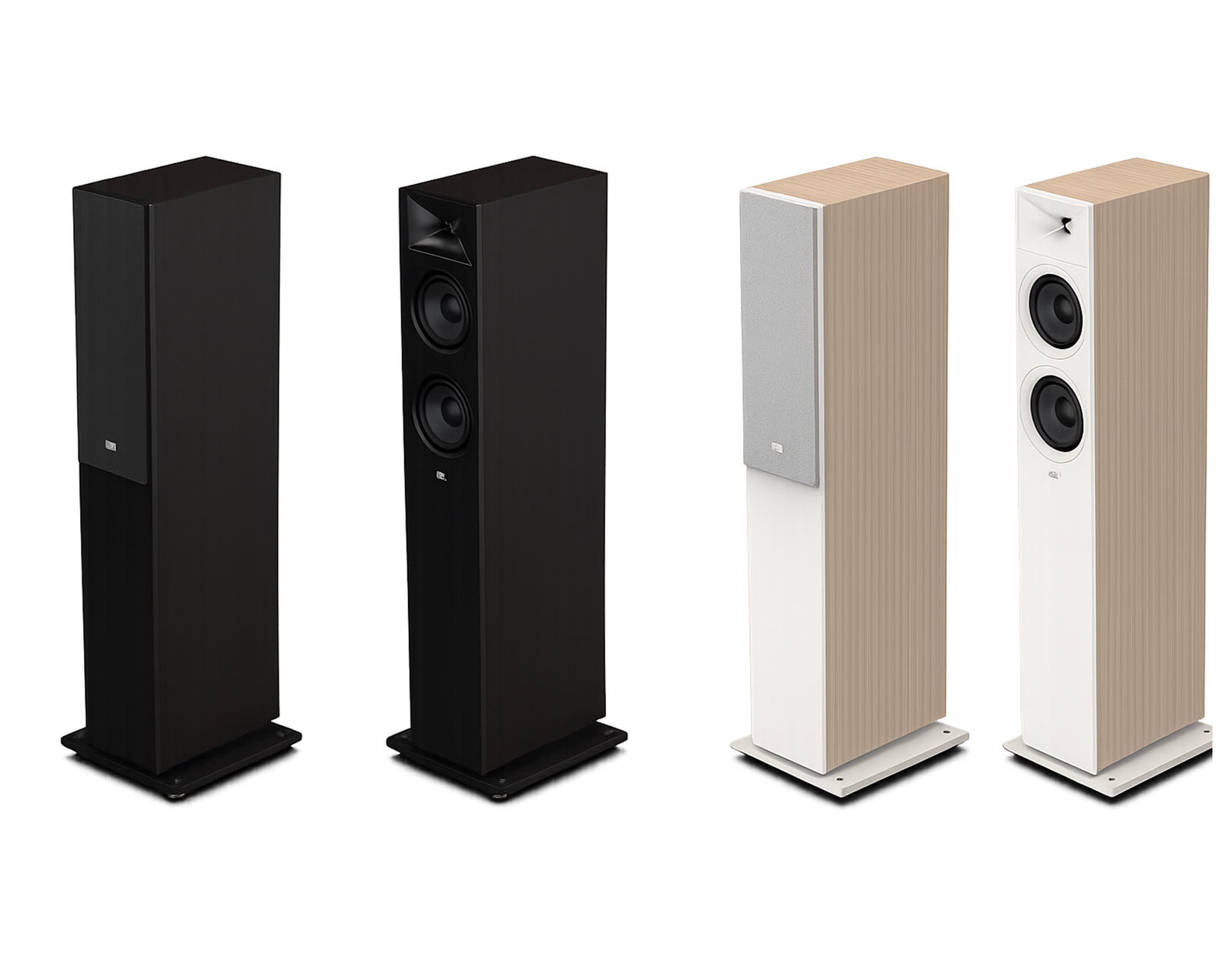

JBL Stage 280F
Product Overview
Designed and engineered in our world-famous Acoustic Engineering Center of Excellence in Northridge, California, the Stage 280F is the flagship of the new JBL Stage Series. This floorstanding loudspeaker features a 2.5-way design with Next Generation patented High-Definition Imaging (HDI™) waveguide geometry, a 1-inch (25 mm) anodized aluminium dome tweeter, and dual 8-inch (200 mm) Polycellulose cone woofers that deliver deep, signature JBL bass.
- Dual 8-inch (200 mm) Polycellulose ribbed cone woofers
- Precision 2.5-way crossover
- Next Generation HDI™ horn
- 1-inch (25 mm) anodized aluminium tweeter
- 5-way binding posts
- Magnetically attached grilles
- Dedicated Atmos 5-way binding posts with integrated wire management
- Dual flared racetrack rear-firing tuned ports
- Compatible with the 240H Atmos height module
JBL Stage 280F
Specifications
- Type
- Floorstanding loudspeaker system
- Low frequency driver
- Dual 8-inch (200 mm) Polycellulose ribbed cone
- High frequency driver
- 1-inch (25 mm) anodized aluminium
- Waveguide
- Next Generation HDI™
- Recommended amplifier power
- 20–225 W
- Frequency response ±6 dB
- 33 Hz – 25 kHz
- Sensitivity @ 1 m, 2.83 V
- 91 dB
- Nominal impedance
- 6 ohms
- Crossover frequencies
- 1.1 kHz / 2.1 kHz
- Enclosure tuning
- Bass reflex via dual flared racetrack rear-firing tuned ports
- Finish
- Espresso or Latte
- Product weight
- 25.1 kg (55.2 lb)
- Shipping weight
- 30.6 kg (67.5 lb)
- Shipping unit
- Each
JBL Stage 280F
Dimensions
- With base (H × W × D)
- 1113 × 357 × 420 mm
43.8 × 14.1 × 16.5 in - Without base (H × W × D)
- 1113 × 241 × 409 mm
43.8 × 9.5 × 16.1 in - Product weight
- 25.1 kg (55.2 lb)
